Separation Bolt
 Product Description：
|
|||
|---|---|---|---|
|
The separation bolt is a non-pyrotechnic, single-use separation mechanism based onshape memory alloy (SMA). Utilizing SMA as the primary actuation source, it enableshighly reliable structural unlocking and separation through a precise thermo-mechanicalconversion mechanism. |
|||
|
Product Advantages:
|
|||
|
● No explosive shock ● Controllable separation process ● No contamination ● Compact size & lightweight ● Easy integration into limited space |

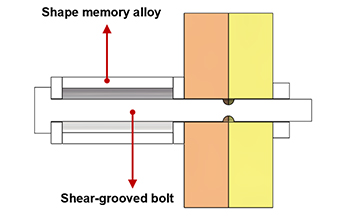

Locking configuration diagram
|
Unlocking configuration diagram
|
|
|
Main Specifications:
|
|||
|
Weight: < 150 g.
Power consumption: 30 W
Locking force: 5,000-10,000 N
Release time: ≤ 100 s
|
|||
